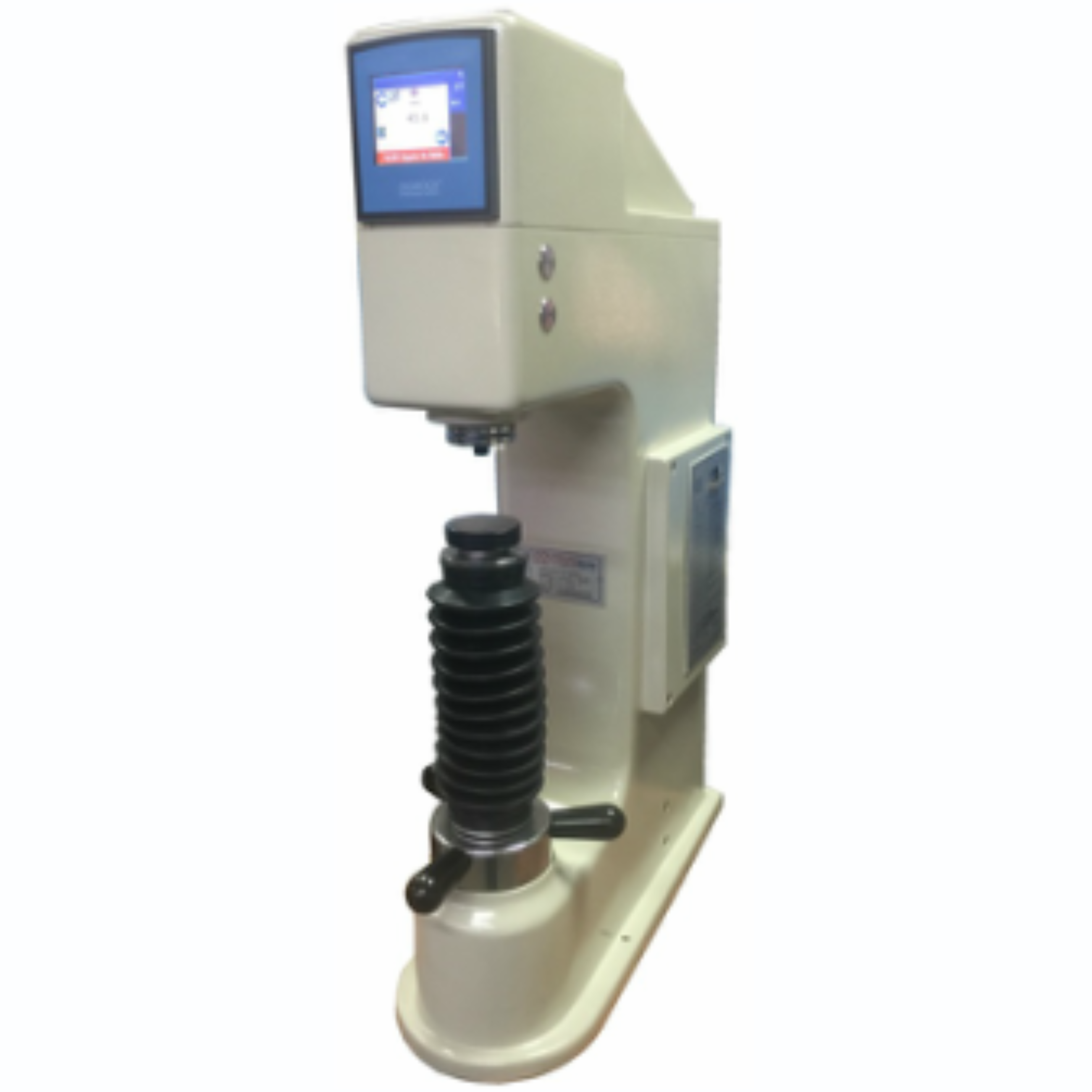

DIGIROCK-RB M
Technical Specifications
| Specification | Details |
|---|---|
| Pre-load (kgf) | 10 |
| Test Loads (kgf) | 100, 150; 62.5, 60, 187.5 |
| Load Selection | By load selector disc |
| Test Method | Rockwell, Brinell |
| Load Application | Motorised |
| Max. Test Height (mm) | 280 |
| Depth of Throat (mm) | 145 |
| Machine Dimensions (mm) | 180 × 780 × 500 |
| Case Dimensions (mm) | 440 × 590 × 950 |
| Weight (Net/Gross) (kg) | 97 / 131 |
Standard Accessories
| Accessory | Quantity |
|---|---|
| Rockwell Cone Diamond Indentor | 1 |
| 1/16″ Ball Indentor | 1 |
| 2.5 mm Ball Indentor | 1 |
| HRC Test Block | 1 |
| HRB Test Block | 1 |
| HB 2.5 / 187.5 Test Block | 1 |
| Flat Testing Table | 1 |
| V Testing Anvil for Round Parts | 1 |
| Hardness Conversion Table | 1 |
| Wooden Case for Accessories | 1 |
| Cover | 1 |
| Allen Spanners | 2 |
| Rubber Bellow for Elevating Screw | 1 |
| Instruction Manual | 1 |
| Calibration Certificate | 1 |
