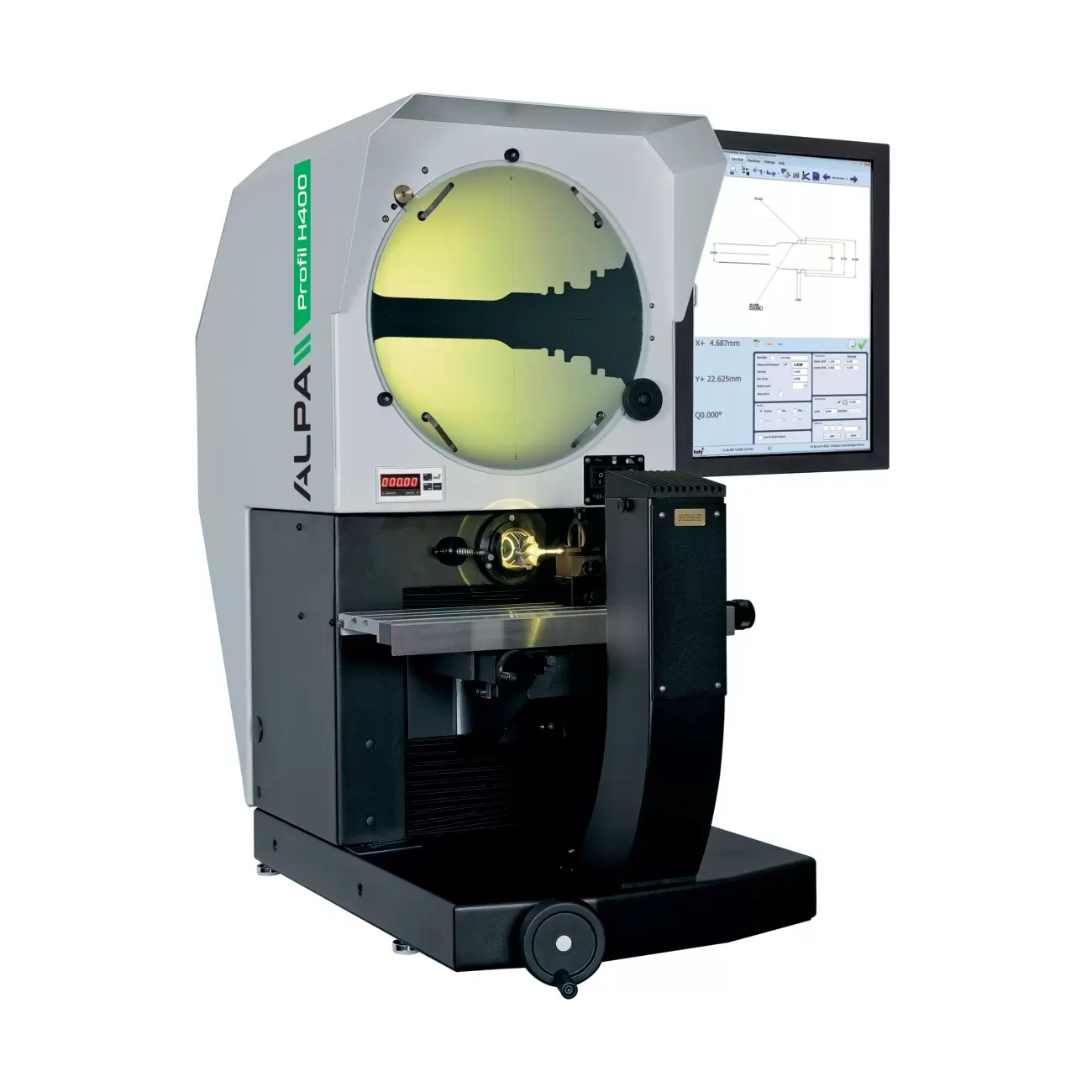

Horizontal profile projector ALPA LA030
Original price was: AED 2.00.AED 1.00Current price is: AED 1.00.
Characteristics
The ALPA PROFIL H400 profile projector with its 400mm screen combines high accuracy non-contact measurements and inspection with a large 300mm x 150mm measuring range. Thanks to adjustable lighting system ALPA PROFIL H400 is ideally suited to turned machied parts, screws and small pieces.
Properties
- Measuring range: (12 x 6)
- Surface area: (19 x 5)
- Rotating screen: (16)
- Image: Straightened, reversed from right to left
- Max load: 15
- Movement: Optional motorized
- Scale resolution: 0,0005
- Light source: Lamps 12v 100w – Led 24vDC, 2oW, 500mA
- Magnification accuracy: Profile 0,05% Surface 0,1%
- Helix adjustment: ± 7°
- Focal distance: 60 mm
- X-axis travel: Manuale con traslazione rapida e regolazione fine
- Y-axis travel: Manuale con manovella e spostamento di 1,4mm/giro
- Optic/Lens magnification: x10, x20, x50, x100
- Maximum Permissible Error: 2,5 + 300 (L) / 80 = 6,25 µm
- Weight: 133
- Packed weight and dimensions: 177 Kg / 1210 x 820 x 1470 mm
