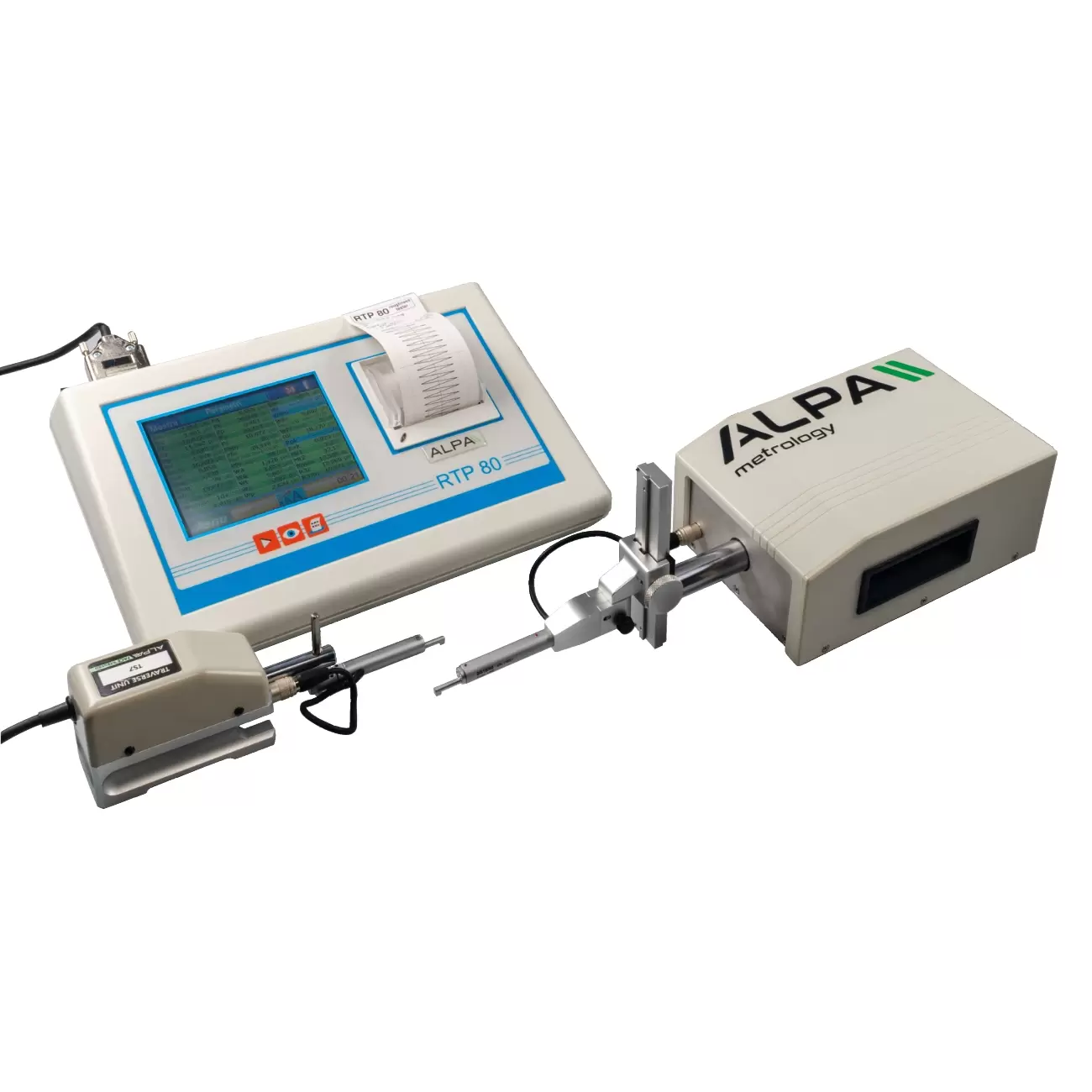

High-performance roughness tester FACE TEST 80 ALPA LA255

High-performance roughness tester FACE TEST 80 ALPA LA255

Original price was: AED 2.00.Current price is: AED 1.00.

Characteristics
ALPA FaceTest 80 roughness tester allows to characterize even the most complex surfaces. The shiny 5,7″ color touchscreen display combined to the icon interface, allows the operator to set the measurement parameters, moving on the piece and carrying out the analisys quickly. The results obtained and the relative tolerances can be printed immediately through integrate thermal printer. Graphs and parameters are all of interactive type, to allow the operator to choose how to present the results. ALPA FaceTest 80 is suitable for production departments, where the measurement settings for batch analyses can be protected by password, and it is also ideal to be used into measuring labs.ALPA FaceTest 80 calculation unit can be connected up to 4 measuring translators for different kind of pieces. It displays the graphs of the roughness profile, primary profile, bearing capacity curves, distribution of ordinates.

Add to wishlist
Categories: ,

Description

Description 54 roughness parameters according to the international main standards (ISO 4287-1997, ISO 12085, DIN 4768, ISO13565). (Ra, Rq, Rt, Rz, Rp, Rc, Rv, Rsk, Rku, Rsm, Rdc, RPc, Pa, Pq, Pt, Pp, Pc, Pv, Psm, Pdc, PPc, Wa, Wq, Wt, Wz, Wp, Wv, Wc, WSm, Wdc, WPc, Rk, Rpk, Pvk, Mr1, Mr2, Pt, Pdc, PPc, R, Rx, AR, Wte, W, AW, Wx, Rke, Rpke, Rvke, Mr1e, Mr2e Rmax, R3z, R3zm)
FEATURES: TS7 Maximum stroke 25 mm. Pocket-sized micro translator with chance to swap probes. Suitable to measure flat and curved surfaces, with axial or perpendicular translation, and prismatic support. TL90 Maximum stroke 50 mm. Translator specifically created for laboratories with micrometric adjustment to measure roughness and profiles. Using the “free-diamond” solution, it gives you the possibility to measure roughness also on curved details like spheres and radii. Properties
  • Measuring range: ± 500 µm
  • Resolution: 0,001 µm
  • Cut-off: 0,25 – 0,8 – 2,5
  • N° cut-off selectable: 1 ÷ 19
  • Stroke length: max 50 mm (TL90)
  • Memory: 1000 measurements
  • ON/OFF:?
  • ABS:?
  • Zero:?
  • Preset:?
  • Sleep:?
