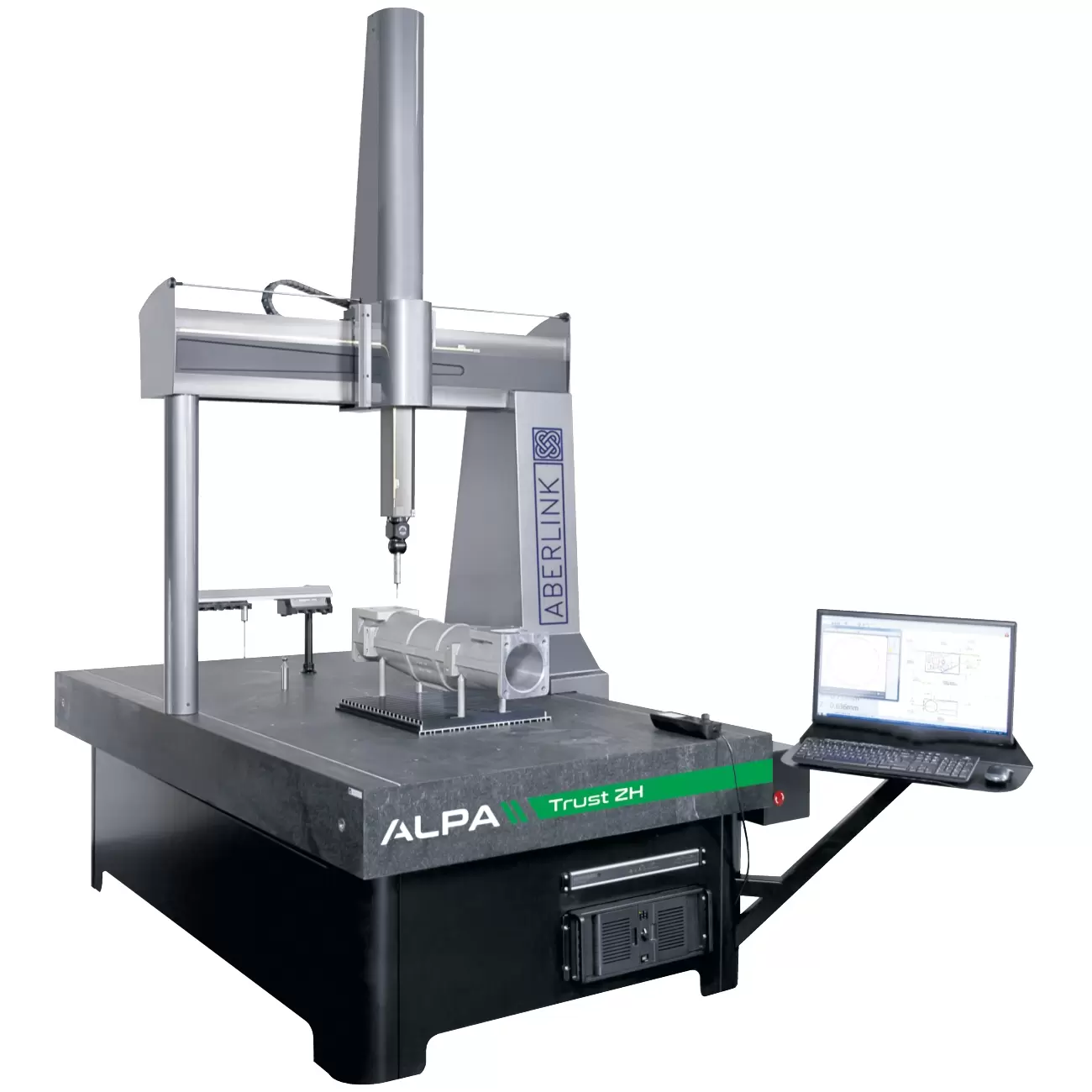

Automatic 3D measuring machine TRUST ZH ALPA LA160
Original price was: AED 2.00.AED 1.00Current price is: AED 1.00.
Characteristics
The ALPA machines TRUST ZH are the result of research, development and continuous evolution of materials. A bridge designed in aluminum alloy guarantees lightness and accuracy in respect to machines in ceramic, granite and other materials. Through the innovative software you can also program the compensation of the temperature of the workpiece material, thus making the machine ALPA TRUST ZH ideal also for the use in workshops. Light weight with an excellent design, our machines are fast, accurate and reliable, they reduce and minimize the time of control.
Properties
- Accuracy μm*: (2.7 + 0.4 L/100) TP8 (2.7 + 0.4 L/100) TP20 (2.6 + 0.4 L/100) TP200 (2.4 + 0.4 L/100) SM25M
- Scale resolution: 0.5
- Optimum temperature: 18 – 22 °C
- Operating temperature: 5 – 45 °C
- Load capacity: 1.500 Kg standard – Options up to 4.400 Kg
- Max drive speed: 600 mm/sec
- Acceleration: 600 mm/sec²
- Air consumption: 50 l/min (1.8 cfm)
- Air pressure: 5 bar (72 psi)
- Drive: Rod + brushless motors
FEATURES
- Axis Measuring range Y from 600 to 1200 mm
- Protection from environmental vibrations
- Smooth and precise movements thanks to air bearings
- Available with TP8 fixed probe head or MH20i indexable head
- Granite top with aluminum honeycomb
- Aberlink 3D software
- Free software update ACCESSORIES (on request)
- Automatic thermal compensation system
- CCD camera
- Collimated back-light for camera
- Dual monitor
- Fixing kit
