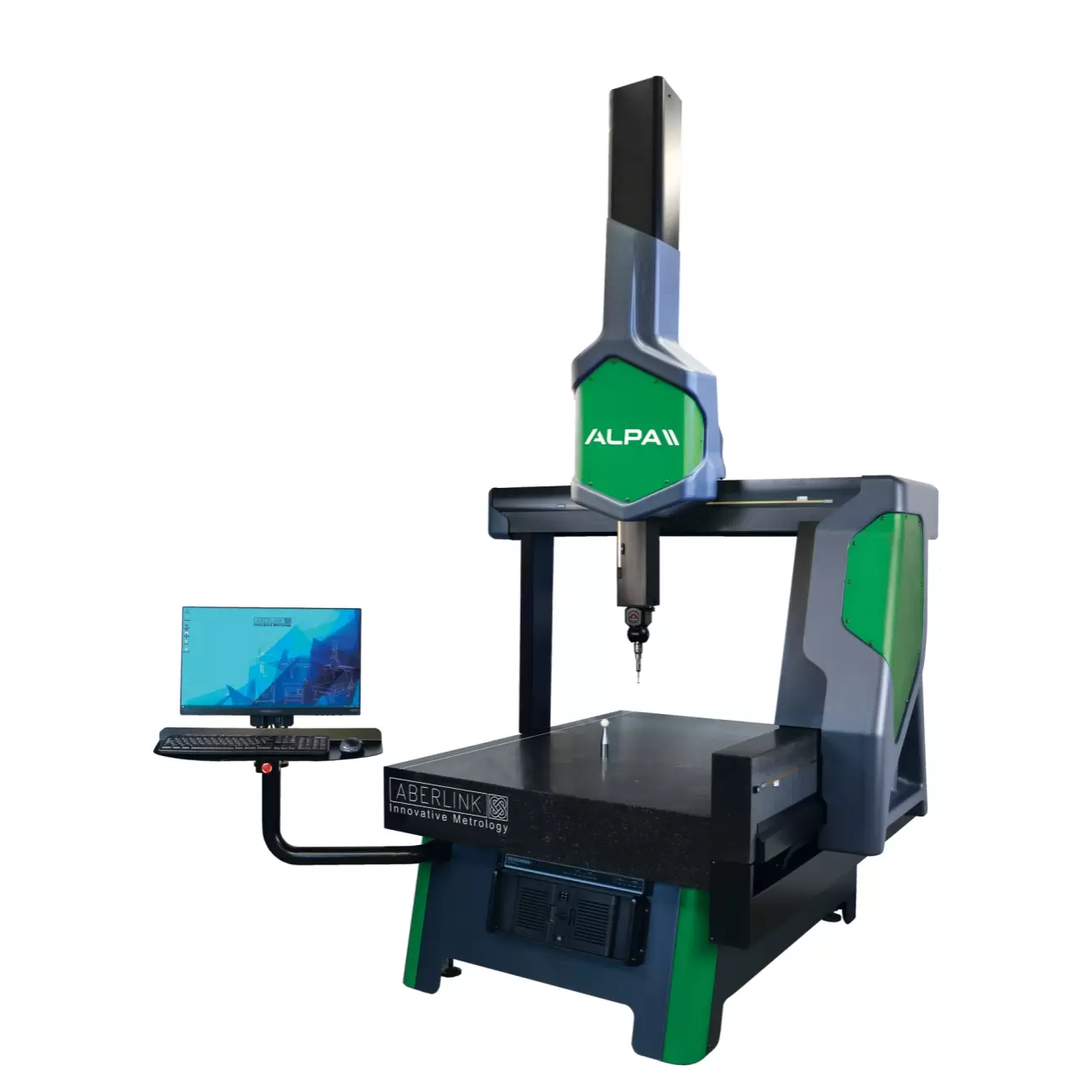

Automatic 3D measuring machine TRUST LS ALPA LA155
Original price was: AED 2.00.AED 1.00Current price is: AED 1.00.
Characteristics
Alpa Trust LS machines are the exspression of maximum technological innovation applied to 3D measurements.The exclusive movement system with linear motors mounted at the centre of gravity of the structure
provides greater speed of movement and measurement accuracy. Ideal for anyone who wants to use the continuous scan configuration.
Properties
- Accuracy μm*: (1.9 + 0.4 L/100) TP8 (1.9 + 0.4 L/100) TP20 (1.8 + 0.4 L/100) TP200 (1.75 + 0.4 L/100) SP25M
- Scale resolution: 0.1
- Optimum temperature range: 18 – 22
- Operational temperature range: 5 – 45
- Table load capacity: 1000
- Max drive speed: 1020 mm/sec
- Acceleration: 1020 mm/sec²
- Air consumption: 50 l/min (1.8 cfm)
- Air pressure: 5 bar (72 psi)
- Movement: Linear motors
FEATURES
- Axis Measuring range Y from 600 to 1200 mm
- Protection from environmental vibrations
- Smooth and precise movements thanks to air bearings
- Available with TP8 fixed probe head or MH20i indexable head
- Granite top with aluminum honeycomb
- Aberlink 3D software
- Free software update ACCESSORIES (on request)
- Automatic thermal compensation system
- CCD camera
- Collimated back-light for camera
- Dual monitor
- Fixing kit
